| Allmänt |

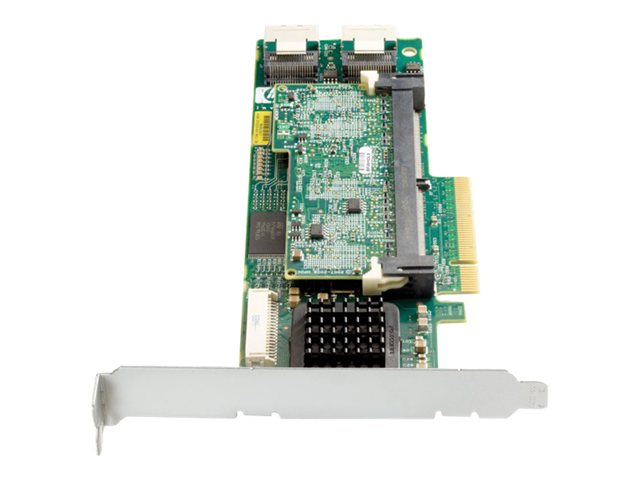

| Typ av enhet | Kontrollerkort (RAID) - instickskort - låg |
| Värdbuss | PCIe 2.0 x8 |
| Kontrollerkort |
| Gränssnitt | SATA 1.5Gb/s / SAS |
| Dataöverföringshastighet | 300 MBps |
| Buffertstorlek | 1 GB |
| Enheter som stöds | Hårddisk, disk array (RAID) |
| Max antal enheter | 64 |
| RAID-nivå | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Processor | PowerPC 440 |
| Expansion/Anslutning |
| Gränssnitt | 2 x SATA 1.5Gb/s / SAS - 32-pin 4i MultiLane SAS (SFF-8484) ( intern ) |
| Kompatibla kortplatser | 1 x PCI Express x8 |
| Kompatibilitetsinformation |
| Designat för | HPE ProLiant DL120 G7, DL120 G7 Base, DL120 G7 Entry, DL120 G7 Performance, DL160 G6, DL160 G6 Special Server, DL165 G7, DL165 G7 Base, DL165 G7 Entry, DL165 G7 Performance, DL165 G7 Special Server, DL180 G6, DL180 G6 Special Server, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL370 G6 Base, DL370 G6 High Performance, DL380 G7, DL380 G7 Base, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G7, DL585 G7 Base, DL585 G7 Performance, ML110 G7, ML110 G7 Base, ML110 G7 Entry, ML110 G7 Performance, ML150 G6, ML330 G6, ML350 G6, ML350 G6 Base, ML350 G6 Performance, ML350 G6 Special Server, SL165s G7, SL165z G7 |
|
